Attribute Value
Series XH
Pitch 2.5mm
Number of Contacts 3
Number of Rows 1
Body Orientation Straight
Shrouded/Unshrouded Shrouded
Mounting Type Through Hole
Connector System Wire to Board
Termination Method Solder
Contact Plating Tin
Contact Material Brass
Current Rating 3.0A

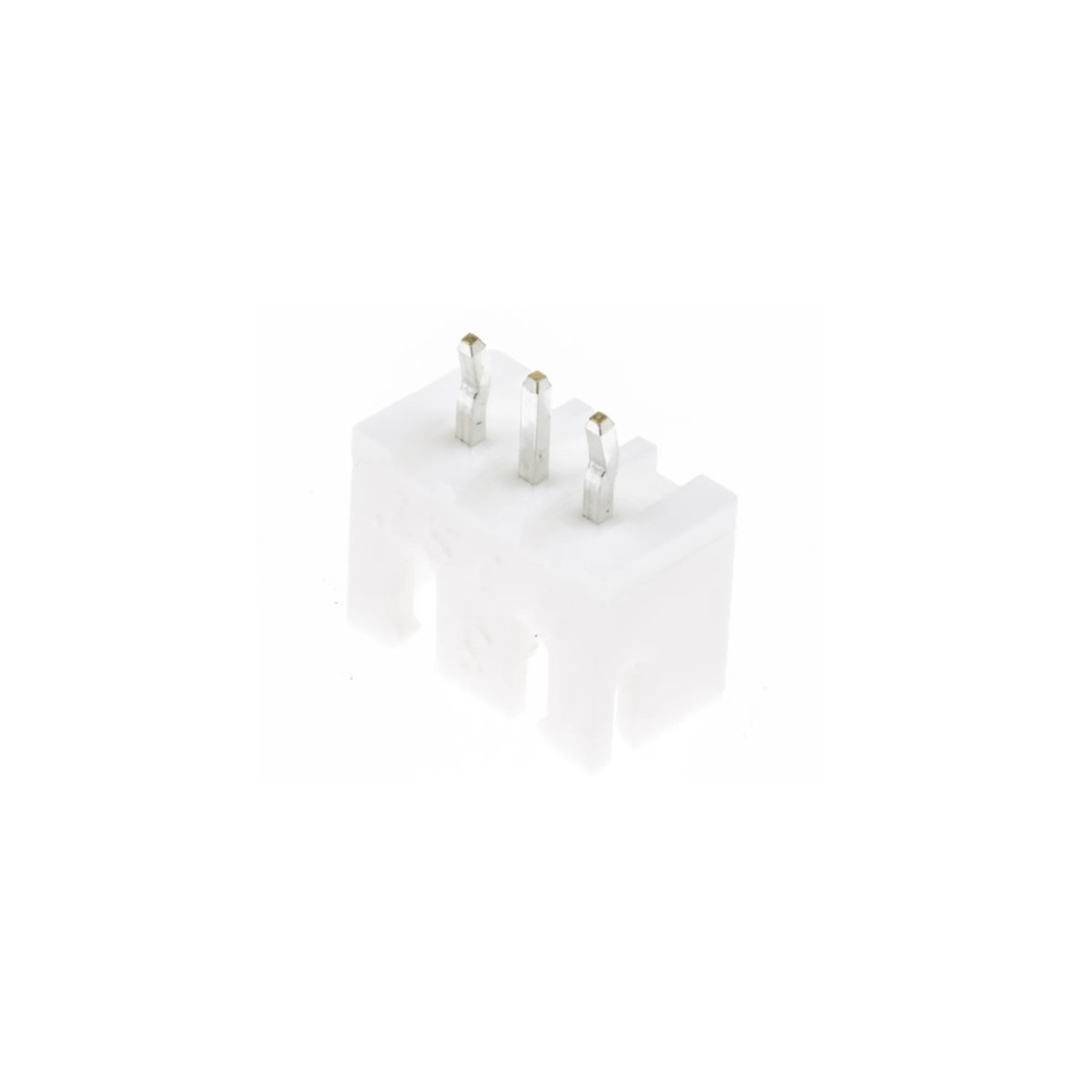

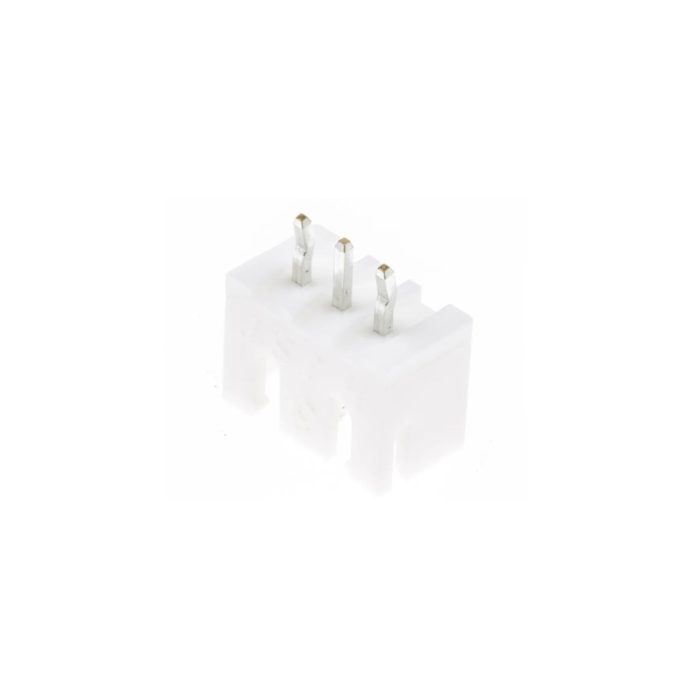

XH Shrouded Header
JST XH Series Box-Type through hole Shrouded Headers are 2.5mm pitch, single row wire to board disconnect crimp style connectors. Available in Top Entry and Side Entry configurations. Posts are Tin plated Brass for these XH Series Box-Type Shrouded Headers.

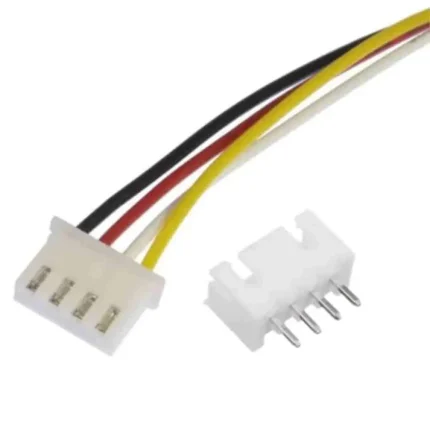

For mating XH Series Receptacle Housings see stock number 820-1611 typical.
Features:
Wire size of 30AWG to 22AWG
Voltage rating of 250VAC/DC
