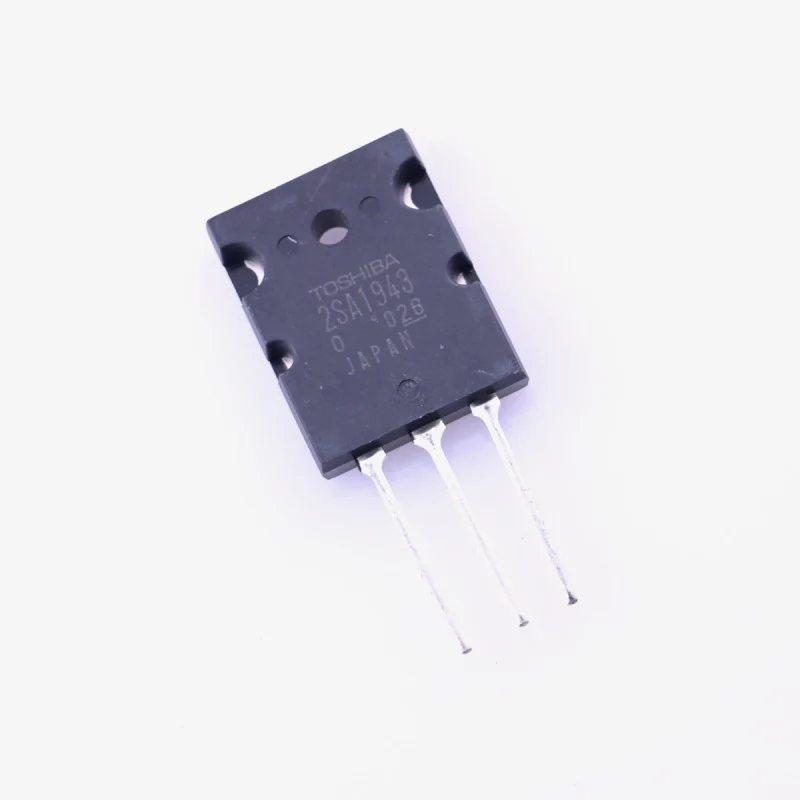

2SA1943 PNP Transistor Features & Specifications:
Package is To-264
Mount type is Through Hole
Number of terminals – 3
Polarity is PNP with medium power
Process technology is advanced
The error voltage is less
Switching speed is very fast
Full-voltage based operation
It handles high current and high power
DC Current Gain or hFE ranges from 55 – 160
Collector current or IC is 15A
Collector to emitter voltage or VCE is 230Volts
Collector to base voltage or VCB is 230Volts
The emitter to base voltage or VBE is 5Volts
The substitution frequency is 30 MHZ.
Operating & storing temperature range is -55 to +150 °C
