The open hole diameter of the R16 503AD is 16mm. The nut is with cut edge finish, it is a plug on the panel. The button will not turn regardless of the machine’s vibration, movement, etc.
2. The R16 503AD Push Button Switch has no built-in resistance. On the external light pin, or on the PCB panel, the resistance corresponding to the desired integration.

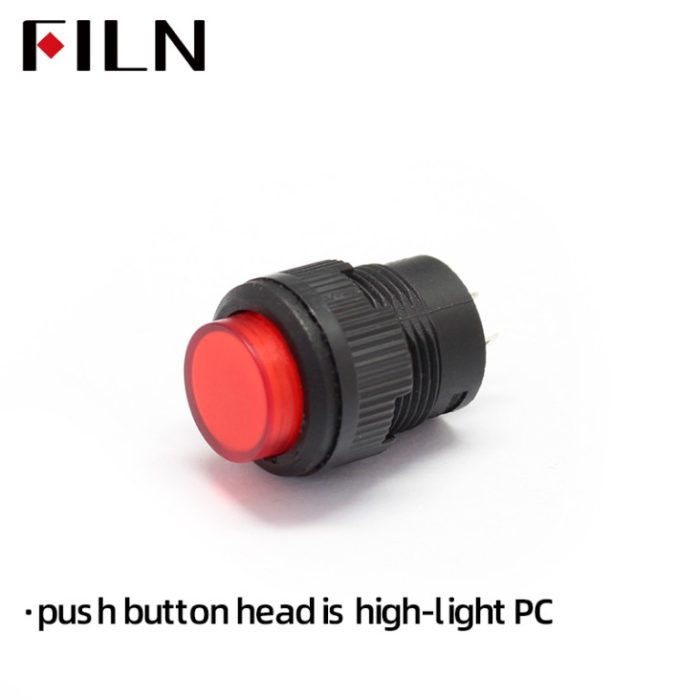

3. The material of the r16 503ad push button head is high-light PC, combined with the white lampshade inside. The light is very uniform and is clearly visible under the strong light during the day.
4. The R16 503AD Push Button Switch housing uses high temperature resistance PA66 material, the service life is long and can reaches over 50,000 times. Usually, R16 503AD is built-in LED lights, and the commonly used colors are red, green, yellow, blue, and white. The LED that we imported is nonpolarity and two-way. This is more convenient for use, at the same time the lamp lights up with the lampshade is very elegant.

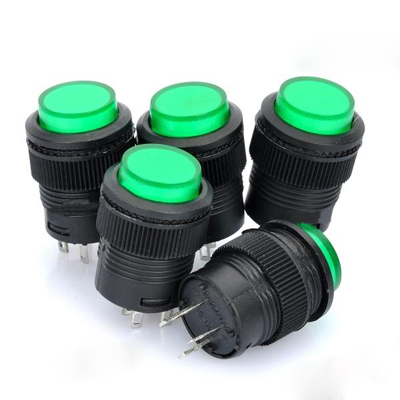

R16-503AD push button switch
5. The pin size of the r16 503ad is 2.8*0.5mm, it can be used directly for welding wire, it also can use a fast connect terminal of 2.8mm in order to save more time and effort.
6. The product is with a lock, meanwhile, we also produce the product with light and no lock.
7. The housing of the r16 503ad is designed to be short and can be used on some narrow panels, or where the small space inside the box. Such as the hotel bedside table integrated panel boxes, doorbell boxes, beauty instruments, and some other small machine equipment.
8. The push button head of the r16 503ad is designed to be convex, which makes the fingers easy to operate.
9. The pin of the r16 503ad adopts the silver-plated pin, and rivet pressed silver contact, it can prevent oxidation and has high conductivity and long life. Meanwhile, electrical signals can be enhanced in micro-current devices.
