Introduction:

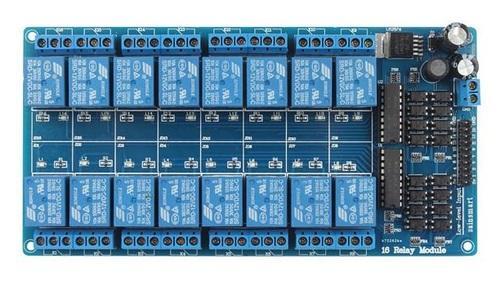

This 16 Channel Relay Module (with light coupling) 12V module meets the safety standard as control areas and load area have the isolation groove. Optical coupling isolation module. The triggering of the 6 Channel Relay Board is reliable, more stable.
The double FR–4 circuit board design, high-end SMT process. Arduino 16 Channel Relay Module has power and relay operation instructions. Relays terminals (C, NC, NO) are accessible through screw terminals which makes wiring up the board very easy.
The inputs of the 6 Channel Optocoupler Relay Module are isolated to protect any delicate control circuitry. A wide range of microcontrollers such as Arduino, AVR, PIC, ARM, and so on can control it. The use of such high-voltage relay eliminates the risk of heating up of the relay as electromechanical relay limit the current consumption in accordance with a voltage rating.
Features Of 5V 16 Channel with Light Coupling Relay Module:
Equipped with high-current relay 10A@250VAC / 10A@30VDC
It can control both AC and DC appliances such as Solenoids, Motors, lights, fans, etc
High-quality screw terminals (Terminal Block) provided (C, NC, NO) for quick and easy connection
A freewheeling diode to protect your microcontroller
Input Signal Pin connected to Burg stick for easy accessibility
LED status indicators to indicate the relay ON/OFF status
Mounting holes provided
Signal input with a high-level signal, the common and often start conduction;
The relay can directly control all kinds of equipment and load;
One often opened a normally closed contact;
Blue KF301 terminal line more convenient.
It is also able to control various appliances and other types of equipment with a large current.
Red working status indicator lights are conducive to safe use. Widely used for all MCU control, industrial sector, PLC control, smart home contro
