Type
Description
Select All
Category

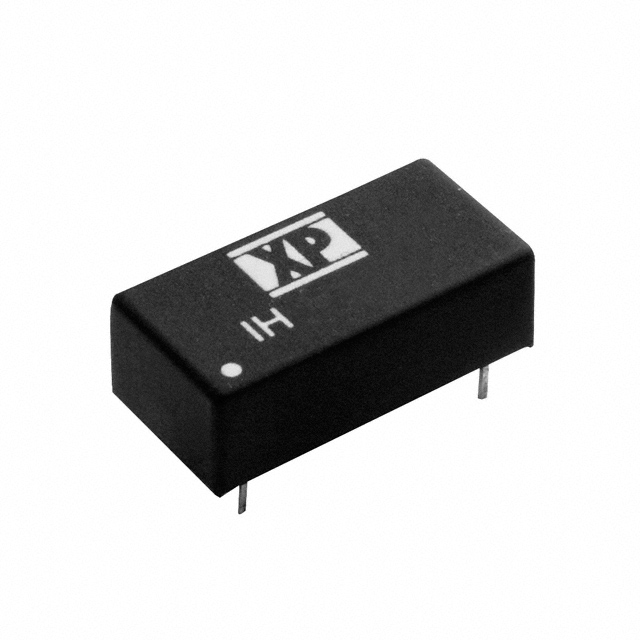

Power Supplies – Board Mount
DC DC Converters
Mfr
XP Power
Series
IH (2W)
Packaging
Tube
Part Status
Obsolete
Type
Isolated Module
Number of Outputs
2
Voltage – Input (Min)
43.2V
Voltage – Input (Max)
52.8V
Voltage – Output 1
9V
Voltage – Output 2
-9V
Voltage – Output 3
–
Current – Output (Max)
111mA, 111mA
Power (Watts)
2 W
Voltage – Isolation
1 kV
Applications
ITE (Commercial)
Features
–
Operating Temperature
-40°C ~ 85°C
Efficiency
77%
Mounting Type
Through Hole
Package / Case
6-DIP Module
Size / Dimension
0.80″ L x 0.40″ W x 0.27″ H (20.3mm x 10.2mm x 6.9mm)
Control Features
–
Base Product Number
IH4809
-5%
1470-2638-5-ND Isolated Module DC DC Converter 2 Output 12V -12V 42mA, 42mA 4.5V - 9V Input
Original price was: ₨ 3500.₨ 3250Current price is: ₨ 3250.
1470-2414-5-ND Isolated Module DC DC Converter 2 Output 3.3V -3.3V 200mA, 200mA 43.2V - 52.8V Input
Original price was: ₨ 4750.₨ 4350Current price is: ₨ 4350.
1470-2418-5-ND Isolated Module DC DC Converter 2 Output 9V -9V 111mA, 111mA 43.2V – 52.8V Input
Original price was: ₨ 5750.₨ 5475Current price is: ₨ 5475.
