Home DC TO DC Converter 1470-2068-5-ND 1 Output 15V 400mA 9V – 36V Input
1470-1828-5-ND 1 Output 9V 333mA 36V - 72V Input ₨ 3750 Original price was: ₨ 3750.₨ 3500Current price is: ₨ 3500.
Back to products
1470-2433-5-ND 1 Output 15V 16.7mA 21.6V - 26.4V Input ₨ 3250 Original price was: ₨ 3250.₨ 2750Current price is: ₨ 2750.

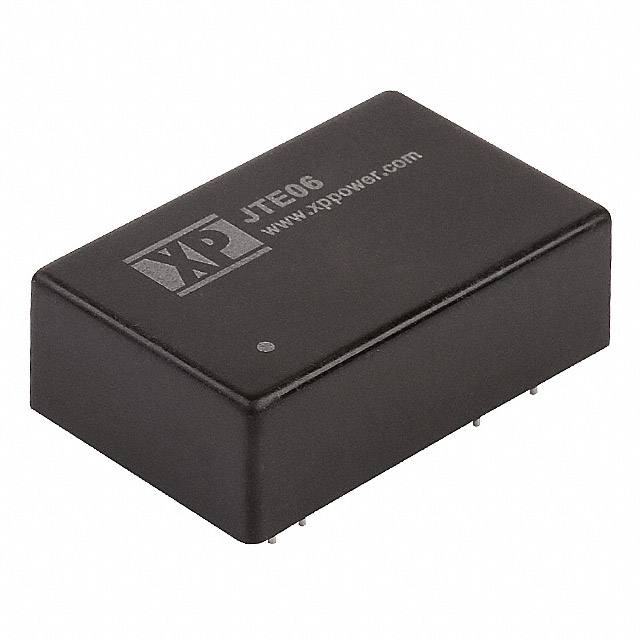

1470-2068-5-ND 1 Output 15V 400mA 9V – 36V Input

₨ 9500 Original price was: ₨ 9500.₨ 8950Current price is: ₨ 8950.

Compare
Add to wishlist
Category: DC TO DC Converter Tag: 1470-2068-5-ND 1 Output 15V 400mA 9V - 36V Input
Share:
  • Description
  • Reviews (0)
  • Shipping & Delivery
Description

Type
Description
Select All
Category
Power Supplies – Board Mount
DC DC Converters
Mfr
XP Power
Series
JTE (6W)
Packaging
Tube
Part Status
Active
Type
Isolated Module
Number of Outputs
1
Voltage – Input (Min)
9V
Voltage – Input (Max)
36V
Voltage – Output 1
15V
Voltage – Output 2
–
Voltage – Output 3
–
Current – Output (Max)
400mA
Power (Watts)
6 W
Voltage – Isolation
1.5 kV
Applications
ITE (Commercial)
Features
OCP, SCP, UVLO
Operating Temperature
-40°C ~ 100°C
Efficiency
84%
Mounting Type
Through Hole
Package / Case
24-DIP Module, 7 Leads
Size / Dimension
1.25″ L x 0.80″ W x 0.41″ H (31.8mm x 20.3mm x 10.4mm)
Standard Number
62368-1
Base Product Number
JTE0624
