Brand
ST
Usage/Application
Power
Mounting Type
DIP
Part Number
UC3842AN
Type
Leaded
Package
1000 pcs packing
Current
<1mA
Voltage
7.9V
Number Of Pins
8 PIN
The UC3842 is a fixed frequency current-mode PWM controller. This IC is specially designed for Off-Line and DC to DC converter applications with minimum external components. Note: UC3842 IC also comes in 14-Pin, 16-Pin, and 20-Pin packages. This article covers only the 8-Pin version of the IC.
-25%

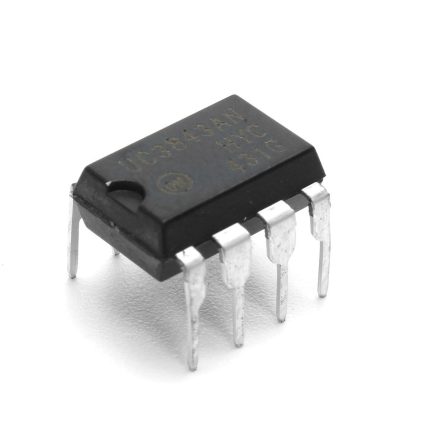

UC3843 – PWM Controller IC
₨ 50 Original price was: ₨ 50.₨ 40Current price is: ₨ 40.

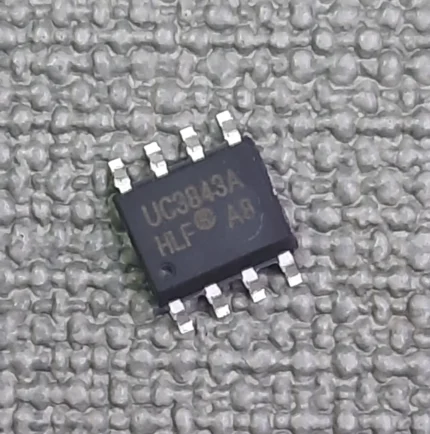

SMD IC UC3843B SOP-8
₨ 50 Original price was: ₨ 50.₨ 40Current price is: ₨ 40.

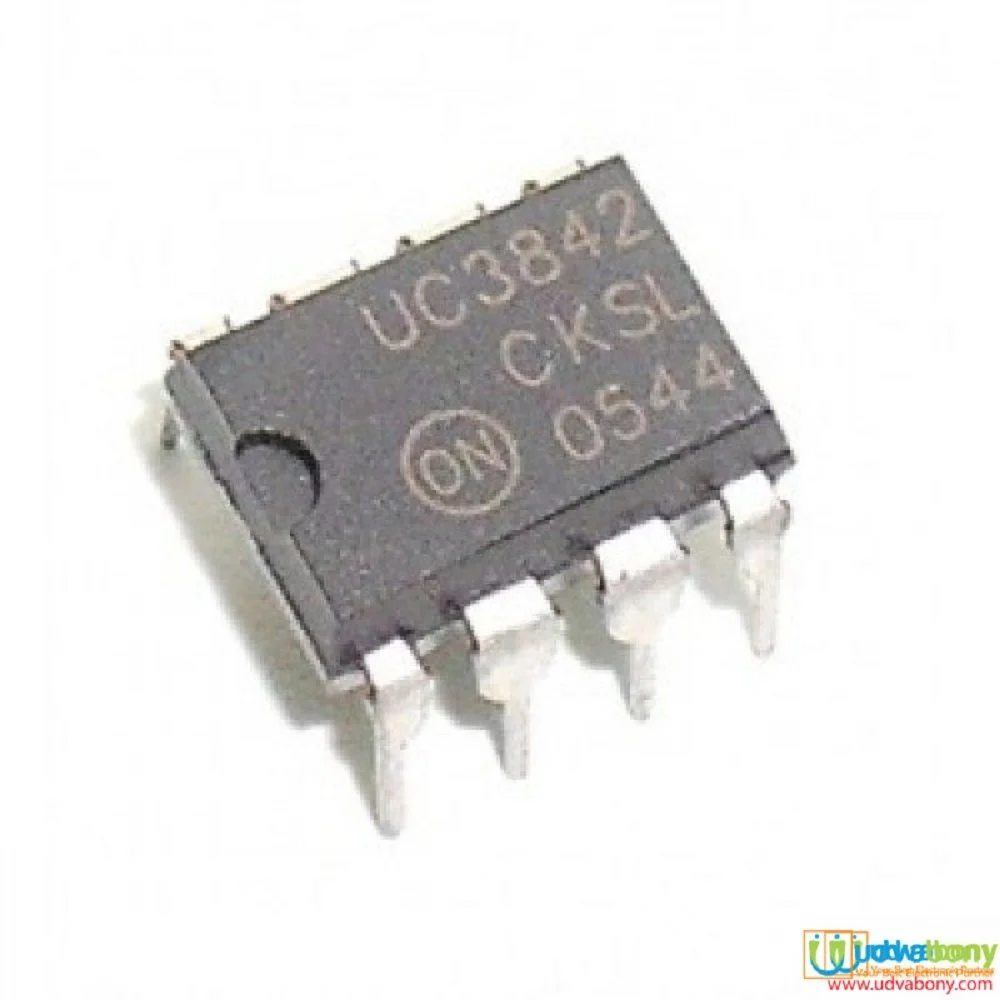

Uc3842 Integrated Circuits, For Power
₨ 120 Original price was: ₨ 120.₨ 90Current price is: ₨ 90.
Category: IC,S
