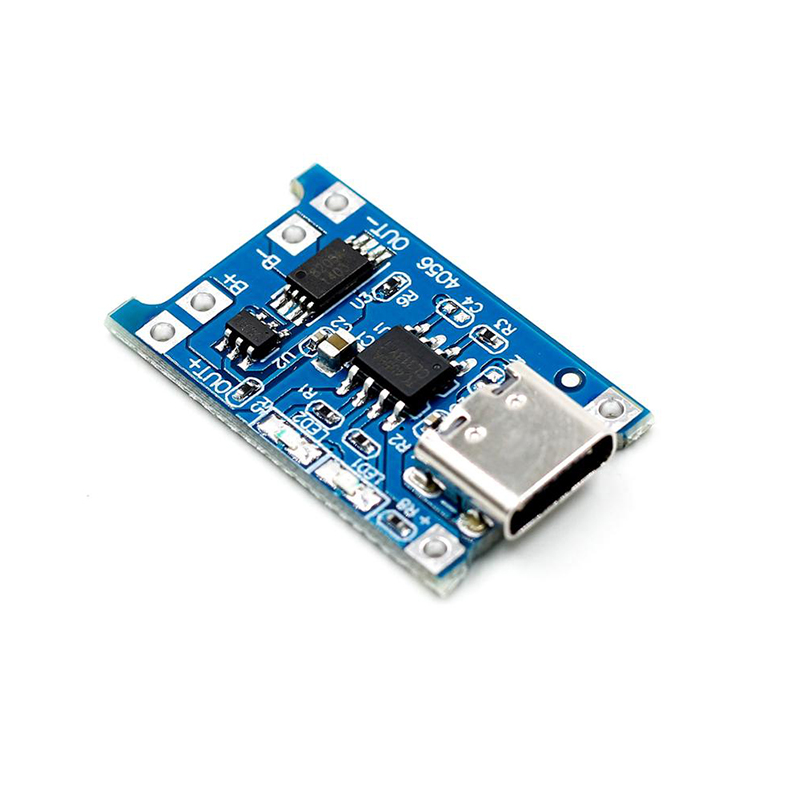

    TP4056 C Type USB Port 1A 18650 Lithium Battery Charging Board Charger Module

    Original price was: ₨ 80.Current price is: ₨ 60.

    Input voltage: 5V
    Load cut-off voltage: 4.2V ± 1%
    Maximum charging current: 1000mA
    Excessive battery discharge protection voltage: 2.5V
    Battery overcurrent protection current: 3A
    Panel size: 17.16 mm x 26.17 mm
    Charge precision: 1.5%.
    Led indicator: red is charging Green is full charged.
    Input interface: Type-C
    Work temperature- -10° to +85°.
    Reverse polarity protection: No
    Size: 25X19X10mm.
    works with all types of lipo & lithium batteries like 18650
    Connect Battery with B+ & B-
    Connect Battery load OUT+ & OUT – (this is uninterrupted power supply

    Compare
    Add to wishlist
    Categories: ,
    Description

    This tiny module is perfect for charging single cell 3.7V 1 Ah or higher LiPo cells such as 16550s that do not have their own protection circuit. Based around the TP4056 charger IC and DW01 Deep Drain Battery Protection IC this module offers 1A charge current. The module cuts off charging current when finished.

    Furthermore when the battery voltage drops below 2.4V the protection IC will switch the load off to protect the cell from running at too low of a voltage – and also protects against over-voltage and reverse polarity connection (it will usually destroy itself instead of the battery) however please check you have it connected correctly the first time.

    Features
    Under Voltage Cut off / Deep Drain Protection
    Over Current Protection
    Adjustable Current Limit through R-Prog
    Over-voltage charging protection
    Usb Type-C Connector (with more commonly available usb cables)
    LED Status Indicator for Charging / Full charge status monitoring
