Number Of Pins
8 Pins
Part No.
TNY290PG
Description:
AC/DC Converters 28.5 W (85-265 VAC) 36.5 W (230 VAC)
Manufacturer:
Power Integrations
Product Category:
AC/DC Converters
Mounting Style:
Through Hole
Package/Case:
DIP-8
Output Voltage:
85 V to 265 V
Output Power:
36.5 W
Input / Supply Voltage – Min:
85 VAC
Input / Supply Voltage – Max:
265 VAC
Technology:
Si
Duty Cycle – Max:
67 %
Operating Supply Current:
930 uA
Series:
TinySwitch-4
Packaging:
Tube
Brand:
Power Integrations
Development Kit:
RDK-295
Number of Outputs:
1 Output
Product Type:
AC/DC Converters
Subcategory:
PMIC – Power Management ICs
Tradename:
TinySwitch
Type:
Off Line Converter
Unit Weight:
2 g
Minimum Order Quantity
50 Piece

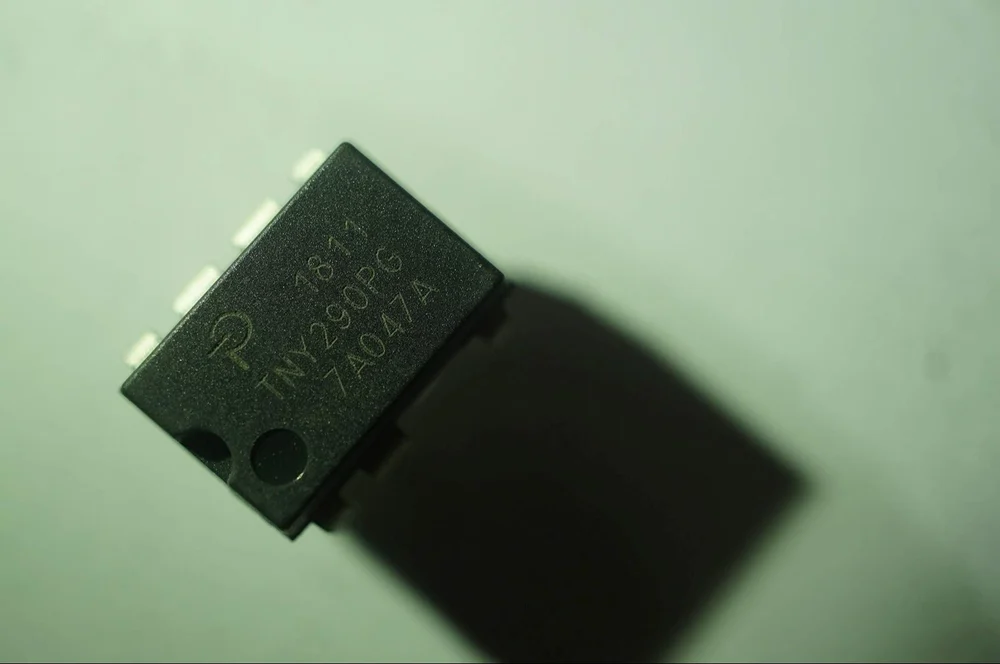

TNY290PG – Power Integrations OffLine Switcher IC – DIP-8 Package
Application includes PC Standby and other auxiliary supplies, DVD/PVR and other low power set top decoders, Supplies for appliances, industrial systems, metering, chargers/adapters for cell/cordless phones, PDAs, digital cameras, MP3/portable audio, shavers, etc. Tags, Integrated Circuits, TNY274P, TNY274G, TNY275P, TNY276P, TNY277P, TNY278P, TNY279P, TNY280P/G.
Features/Specs:
Manufacturer: Part No: TNY290PG
Manufacturer: Power Integrations
Series: TNY290
Product Type: AC/DC Converters
Output Voltage: 85V ~ 265V
Operating Supply Current: 930 uA
Output Power: 36.5 W
Number of Outputs: 1 Output
Duty Cycle: 67%
Input Supply Voltage Range: 85VAC ~ 265VAC
Operating Temperature Range: -40°C ~ 150°C
Mounting Style: Through Hole
Package/Case: DIP-8
Applications:
PC Standby and other auxiliary supplies
DVD/PVR and other low power set top decoders
Supplies for appliances, industrial systems, metering, etc
Chargers/adapters for cell/cordless phones, PDAs, digital cameras, MP3/portable audio, shavers, etc
