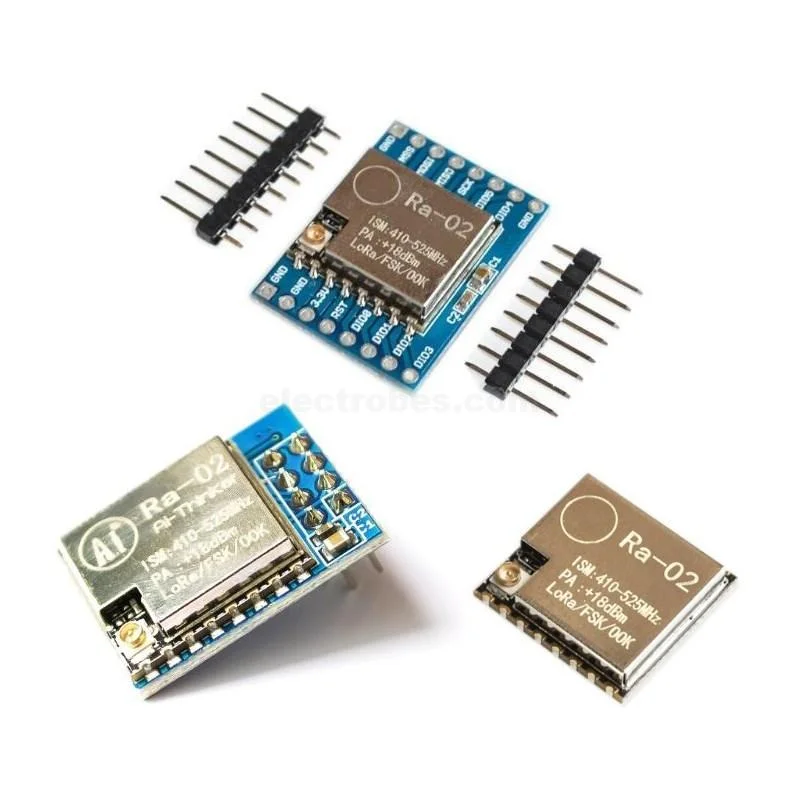

SX1278 LoRa 433M 10KM Ra-02 Wireless module Spread Spectrum Transmission Socket for Smart Home DIY
Description:
Ra-02 is a wireless transmission module based on SEMTECH‘s SX1278 wireless transceiver. It adopts advanced LoRa spread spectrum technology, with a communication distance of 10,000 meters. It has strong ability of anti-jamming and has the function of air wake-up Consumption. The SX1278 RF module is mainly used for long-range spread spectrum communication, and it can resist Minimize current consumption. The SX1278 has a high sensitivity of -148 dBm with a power output of +20 dBm, and a long transmission distance and high reliability. At the same time, compared with the traditional modulation technology, LoRa ™ modulation technology has obvious advantages in anti-blocking and selection, which solves the problem that the traditional design scheme can not consider the distance, interference and power consumption at the same time.
It can be covering thousands of people in the district environment, particularly suitable for meter reading, smart home, burglar alarm equipment.
Features:
Lora ™ Spread Spectrum modulation technology
Constant RF power output at + 20dBm-100mW voltage change
Half-duplex SPI communication
Supports FSK, GFSK, MSK, GMSK, LoRa ™ and OOK modulation modes
Automatic RF signal detection, CAD mode and very high speed AFC
Packet engine with CRC up to 256 bytes
Small footprint dual-row stamp-hole patch package
Shielded housing
Spring Antenna
Specifications
Communication distance: 15KM
Sensitivity: down to -148dBm
Programmable bit rates: up to 300kbps
RSSI dynamic range: 127dB
Wireless frequency: 433MHz
Working voltage: 1.8-3.7v
Working temperature: -40-+80
