Max Surge Current
300 A
VF Forward Voltage
3.2 V
IR Reverse Current
250 uA
Reverse Voltage and High Reliability
1200 V
Product:
Switching Diodes
Mounting Style:
Through Hole
Package/Case:
TO-247-2
Maximum Operating Temperature:
– 65 C ~ + 175 C

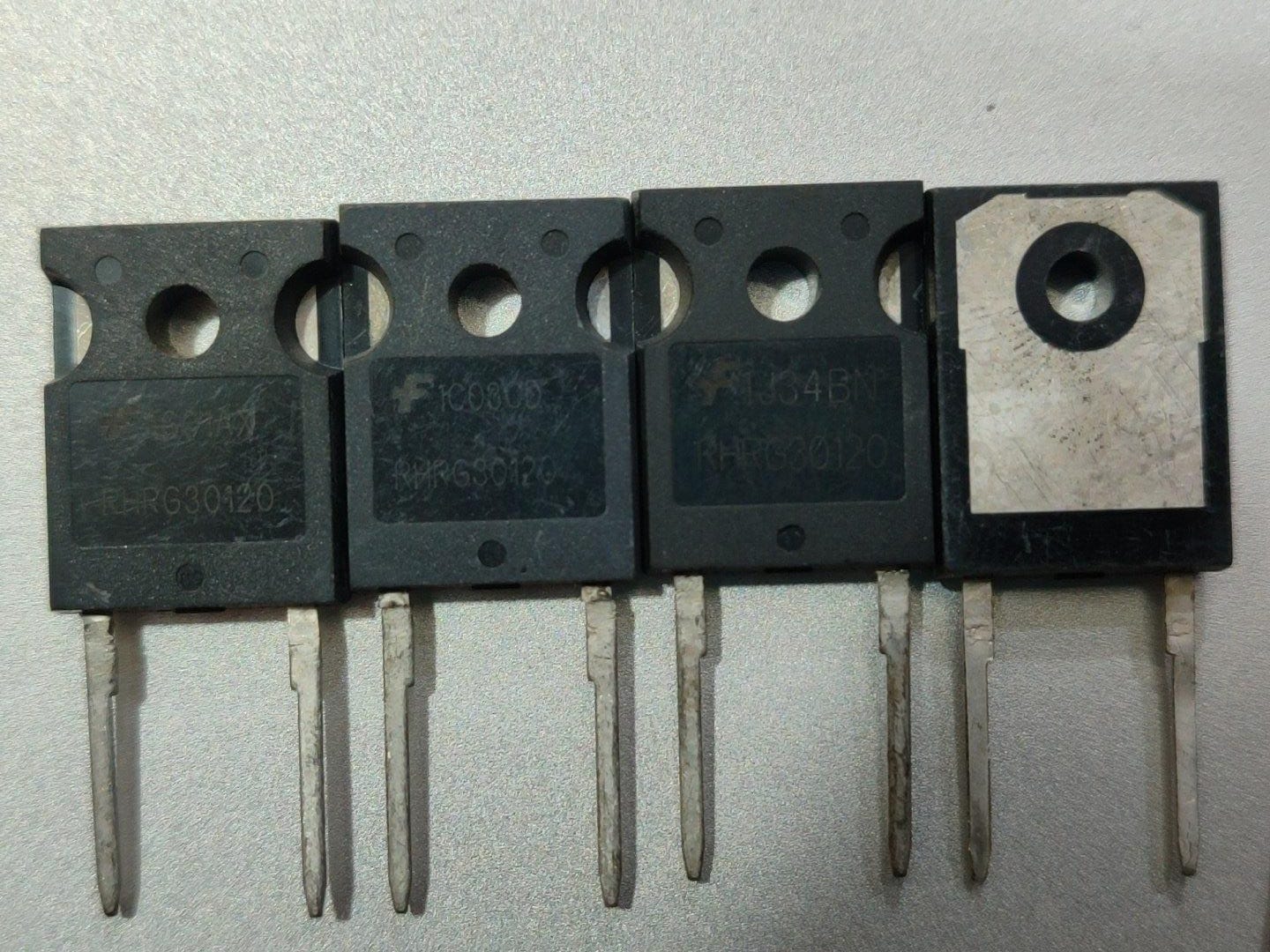

The RHRG30120 is a hyper-fast diode with soft recovery characteristics. It has the half recovery time of ultra-fast diodes and is silicon nitride passivated ion implanted epitaxial planar construction.RHRG30120 diodedevice is intended to be used asfreewheeling/ clamping diodes and diodes in a variety of switching power supplies and other power switching applications. Their low stored charge and hyper-fast soft recovery minimize ringing and electrical noise in many power switching circuits reducing power loss in the switching transistors.
Features of RHRG30120 Hyper-fast Diode:
Hyper-fast recovery Trr = 85ns (@IF= 30A)
Max Forward Voltage, VF = 3.2V (@ TC = 25 DegreeC)
Avalanche Energy Rated
RoHS compliant
Package / Case TO-247
If – Forward Current 30 A
Configuration Single
Application of RHRG30120 Hyper-fast Diode:
Uninterruptible Power Supply
