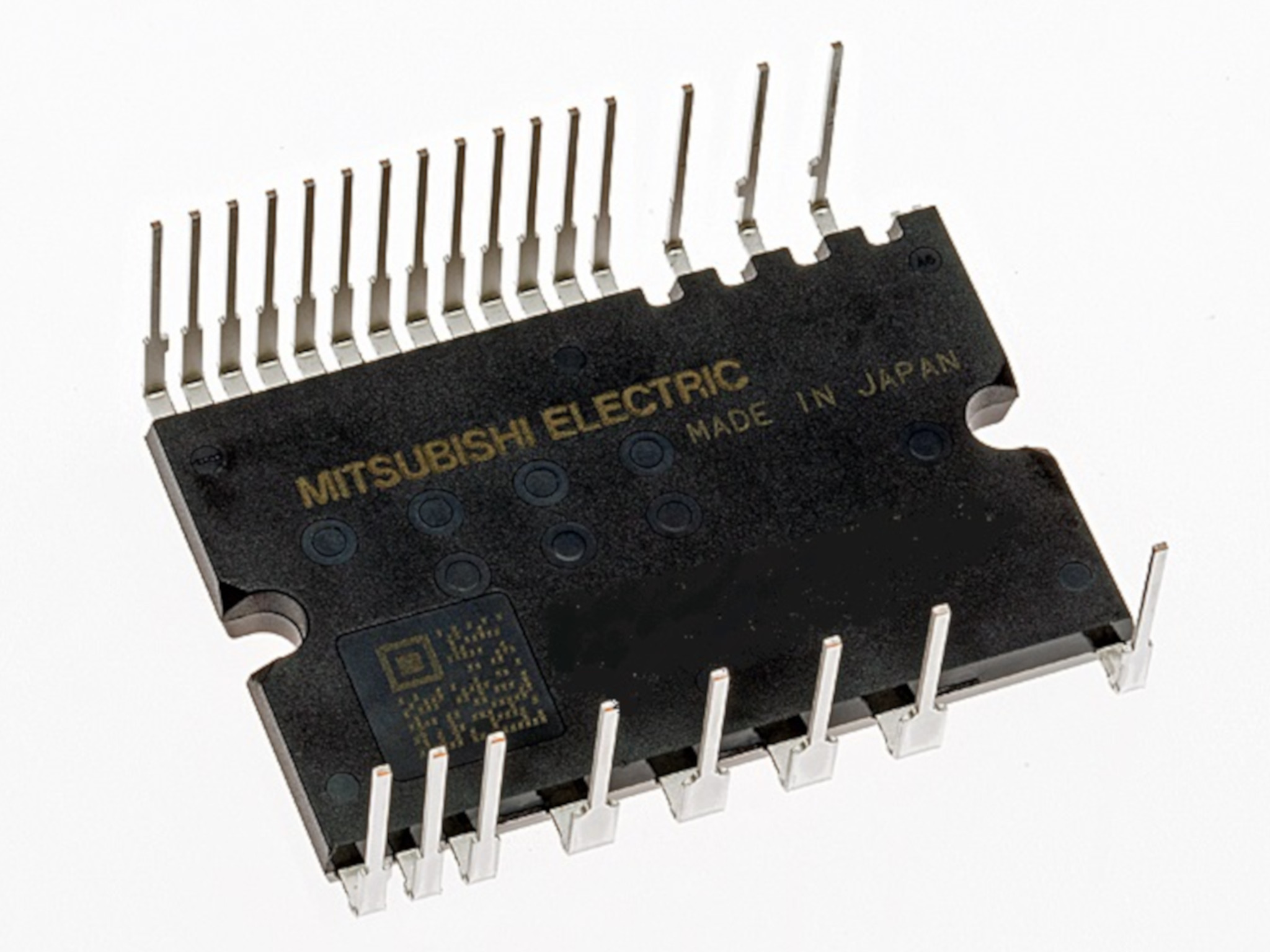

(UV) protection
For N-side : Drive circuit, Control supply under-voltage protection (UV), Short circuit protection (SC)
Fault signaling : Corresponding to SC fault (N-side IGBT) and UV fault (N-side supply)
Temperature output : Outputting LVIC temperature by analog signal
Input interface : 3, 5V line, Schmitt trigger receiver circuit (High Active)
DIPIPM, SLIMDIP, DIPIPM+, SOPIPM, DIPPFC and CSTBT are trademarks of MITSUBISHI ELECTRIC CORPORATION.
Applications
Air conditioner
Cloth washer
Refrigerator
Dish washer
Fan
Pump
Specifications
Parameters Value Unit
VCES 600 V
±IC 15 A
Isolation voltage 1500 Vrms
Tj 150 ℃
Connection Three phase inverter with driver ICs
Package type Super mini
Supply situation In production
UL Recognition : UL1557 File E80276
