Brand
3AN TELECOM
Part Number
3AN-006-0012
Contact Material
Brass
Mounting Type
Cable Mount
Pin Type
Solder

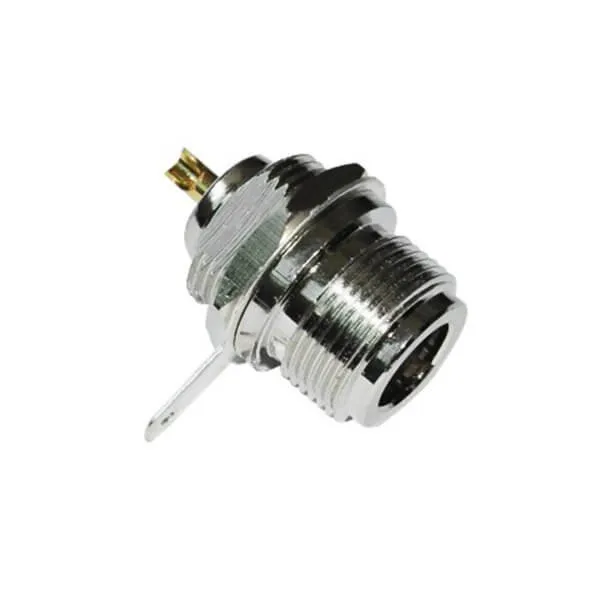

Description: Panel Mount, Jack/female, Straight/180°, 50Ω, bulkhead
Accessories: nut+washer
Features:
Panel Mount, Jack/female, Straight/180°, 50Ω, bulkhead;
Great performance with DC to 11GHz Frequency and 50 ohm impedance;
Threaded coupling mechanism ensure durability and stability for vibration application;
Medium size used in military, industry or consumption electronic area, etc;
From the OEM Original Factory, same quality with much better price.
Main Application of N Connectors:
Aerospace and Defense: Radar Equipment
Medical: Ablation equipment
Commercial Vehicle: Bluetooth and GPS
Telecommunications: Antennas, Base Stations, Passive/Active Base Station Components, Telecommunication hardware
Data/Communications: Broadcast Electronics, Wifi
Industrial: Machine to Machine Communications
Techinial Datasheet:
Electrical Characteristics
· Impedance???50 ohm
· Frequency Range: 0~11 Ghz
· VSWR: Straight type ??? 1.3max / R/A type ??? 1.5max
· Dielectric Withstanding Voltage: 2500 V rms
· Working Voltage: 1000 V rms
· Center Contact Resistance ??? 1.0 mΩ (Milliohms max.)
· Outer Contact Resistance ??? 0.2 mΩ (Milliohms max.)
· Insultation Resistance ??? 5 x 10³ mΩ (Megohms min.)
Mechanical Characteristics
· Coupling: 5/8-24 thread
· Contact Retention: 6 lbs min.
· Coupling nut torque: 30 in-lbs. min.
· Durability(mating) ??? 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
· Temprature Range: -55°C ~ +155°C ( PE Cable-40°C ~ +85°C )
· Vibration: MIL-STD-202 Meth.204
· Corrosion resistance: MIL-STD-202 Meth. 101
