Description

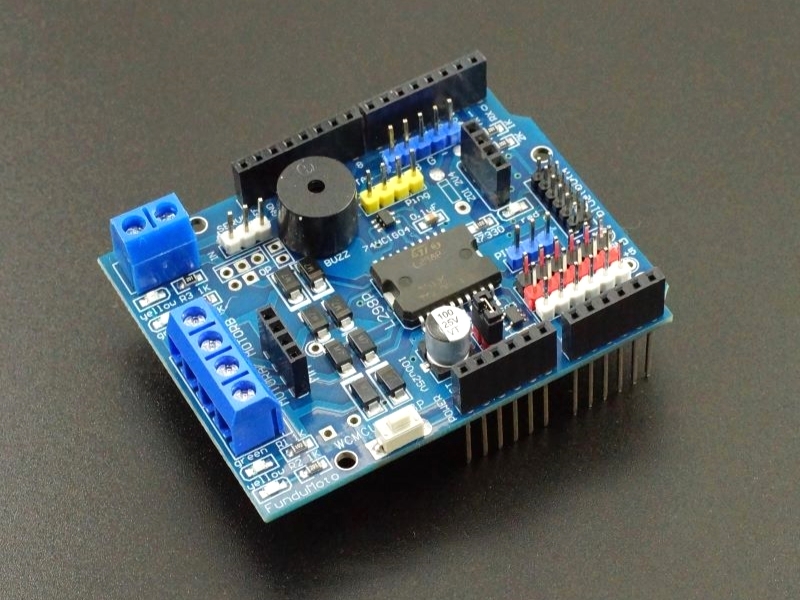

The FunduMoto L298P Motor Driver Shield is a multi-featured motor shield based around the L298P driver chip and fits Arduino Uno or other Arduino with compatible I/O pins.
PACKAGE INCLUDES:
L298P Motor Driver Shield
KEY FEATURES OF L298P MOTOR DRIVER SHIELD:
Drive 2 DC motors at 4.8-24V at up to 2A peak (2.5A peak) current.
Built-in Schottky diodes to protect against motor back EMF.
Drive 1 servo motor with a dedicated 5V regulated power.
Built-in buzzer.
Remote reset switch.
Bluetooth connector (x2).
Ultrasonic Range Finder Ping connector.
RGB LED connector
6 Analog/digital pins brought out to 3-pin headers with 5V and Gnd available for each input for easy sensor hookup.
Stacking female connectors for supporting another daughter card.
Can optionally power attached Arduino off the shield.
Logic Power subsystem
The Arduino 5V is brought up to the shield and is available on the 6 sets of red sensor 5V pins, the yellow Ping connector for Ultrasonic Rangefinders and the 2 blue digital connectors. It is also used to power the logic portion of the L298P chip. This ensures that they have good clean 5V power independent of what the motors are doing.
