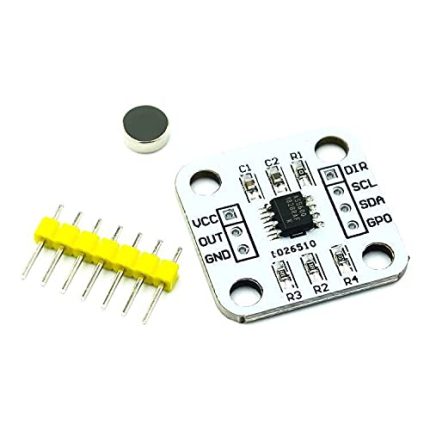

AS5600 Magnetic Encoder Magnetic Induction Angle Measurement Sensor Module 12-Bit High Precision Original price was: ₨ 1350.Current price is: ₨ 1175.

JSN-SR04T / AJ-SR04T Waterproof Ultrasonic Sensor Module

Original price was: ₨ 1350.Current price is: ₨ 1225.

Operating Voltage: 5V DC
Static Operating Current: 5mA
Operating Current: 30mA
Acoustic Emission Frequency: 40kHz
Maximum range: 4.5m
Minimum range: 25cm
Connection pins: +5V, Trig, Echo, GND
Module Dimensions: 41mm * 28.5mm
Sensitivity: ~0.5cm
Sight Angle: <50° Operating Temperature: -10 ~ 70 ℃ Storage Temperature: -20 ~ 80 ℃

Compare
Add to wishlist
Category: Tag:
Description

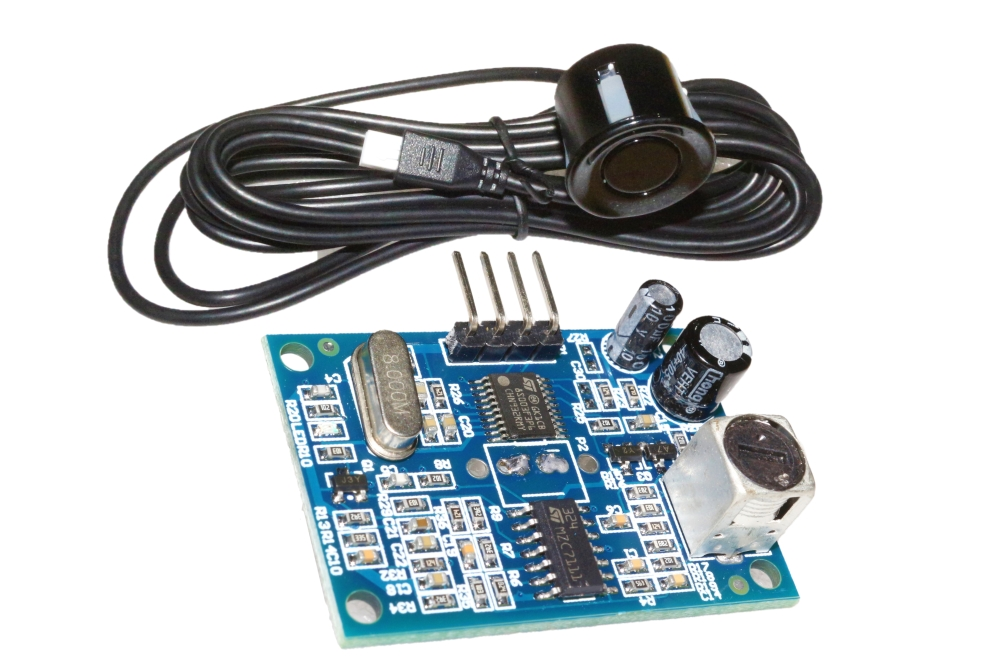

JSN-SR04T Waterproof Ultrasonic Sensor Module
This is a JSN-SR04T waterproof ultrasonic rangefinder module, The use of industrial-grade integrated ultrasonic probe design, which is stable performance. Its usage is as same as HC-SR04, the measurement distance is accurate- about 0.5cm, the furthest distance can be measured is 4.5m, because it is small so easy to carry. Suitable for a variety of wet and harsh measurement environment. In general, it is used in horizontal ranging, obstacle avoidance, automated control, monitoring of objects and its movement, traffic control, security and artificial intelligence, educational research.

Product parameters:
Operating voltage: DC 3.0~5.5V
Operating current: less than 8mA
Probe frequency: 40kHz
Long range up to: 600cm
Near Range: 20cm
Distance accuracy: +-1cm
Measuring angle: 75 degrees
Input trigger signal:
TTL pulse above 10uS
serial transmission instructions 0X55
Output reverb signal: output pulse width level signal, or TTL
Wiring:
3-5.5V (power positive)
Trig (control) RX
Echo (output) TX
GND (power negative)
