DESCRIPTION

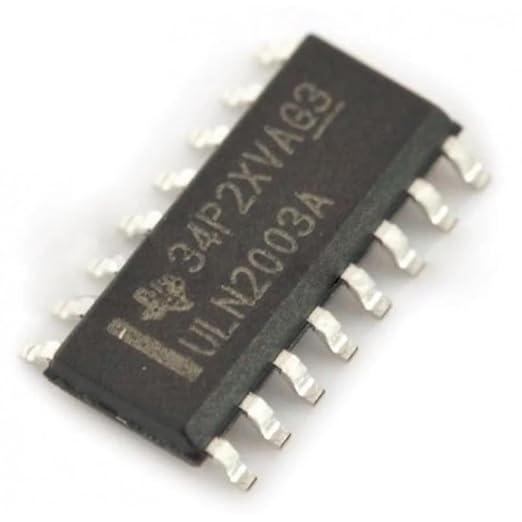

Ideally suited for interfacing between low-level logic circuitry and multiple peripheral power loads, the Series ULN20xxA/L high-voltage, high-current Darlington arrays feature continuous load current ratings to 500 mA for each of the seven drivers. At an appropriate duty cycle depending on ambient temperature and number of drivers turned ON simultaneously, typical power loads totaling over 230 W (350 mA x 7, 95 V) can be controlled. Typical loads include relays, solenoids, stepping motors, magnetic print hammers, multiplexed LED and incandescent displays, and heaters. All devices feature open-collector outputs with integral clamp diodes.
The ULN2003A/L and ULN2023A/L have series input resistors selected for operation directly with 5 V TTL or CMOS. These devices will handle numerous interface needs — particularly those beyond the capabilities of standard logic buffers.
The ULN2003A/L is the standard Darlington arrays. The outputs are capable of sinking 500 mA and will withstand at least 50 V in the OFF state. Outputs may be paralleled for higher load current capability. The ULN2023A/L will withstand 95 V in the OFF state.
FEATURES
Transistor Polarity: NPN
Collector Emitter Voltage V(br)ceo: 50V
DC Collector Current: 350mA
Operating Temperature Range: -20°C to +70°C
Transistor Case Style: SOIC
No. of Pins: 16
SVHC: No SVHC (18-Jun-2012)
Current Ic Continuous a Max: 500mA
Module Configuration: Seven
No. of Transistors: 7
Package / Case: SOIC
Termination Type: SMD
