    Flex sensor 2.2 inch Price in Pakistan

    Original price was: ₨ 2200.Current price is: ₨ 1950.

    A 2.2 Inch Flex Sensor – Bend Sensor with a length of 2.2″ which bends and flexes with a physical device. In addition the sensor is flex, the resistance across the sensor increases. Hence a connector is 0.1″ spaced and breadboard friendly. Applications in – Robotics, Gaming (Virtual Motion), Medical Devices, Computer Peripherals, Musical Instruments, ans also a Physical Therapy.

    Compare
    Add to wishlist
    Category: Tag:
    Description

    Flex Bend Sensor 2.2 Inch Flex Pressure Sensor for Robot Hand Electronic Gloves Resistive Flex Sensor

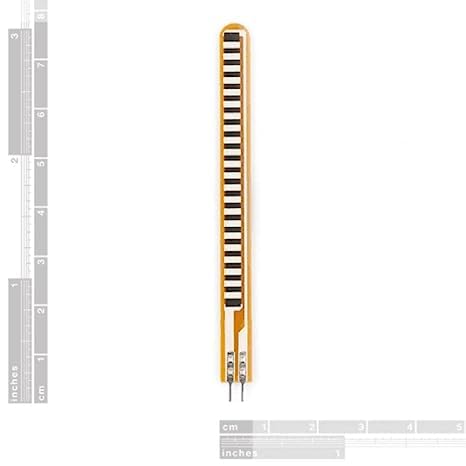

    A simple flex sensor 2.2″ in length. As the sensor is flexed, the resistance across the sensor increases.

    The resistance of the flex sensor changes when the metal pads are on the outside of the bend (text on inside of bend).

    Connector is 0.1″ spaced and bread board friendly.

    The resistance of the flex sensor changes when the metal pads are on the outside of the bend (text on inside of bend).

    Attention: Bending direction: the side with words is the inner side during bending. Avoid bending the end pin part (i.e. non-bending detection part) when using, otherwise it may cause damage.

    Technical specifications
    Resistance in straight state: 25K ohms
    Resistance value tolerance: ± 30%
    Bending resistance change: 60K~110K ohms
    Nominal power: 0.5 watts
    Peak power: 1 watt
    Bending life:>1 million times
    Operating temperature: -35°C~+80°C
    Length x width: 73.66×6.35mm
    Interface Type: 2-pin metal pins (0.1″ spacing)
