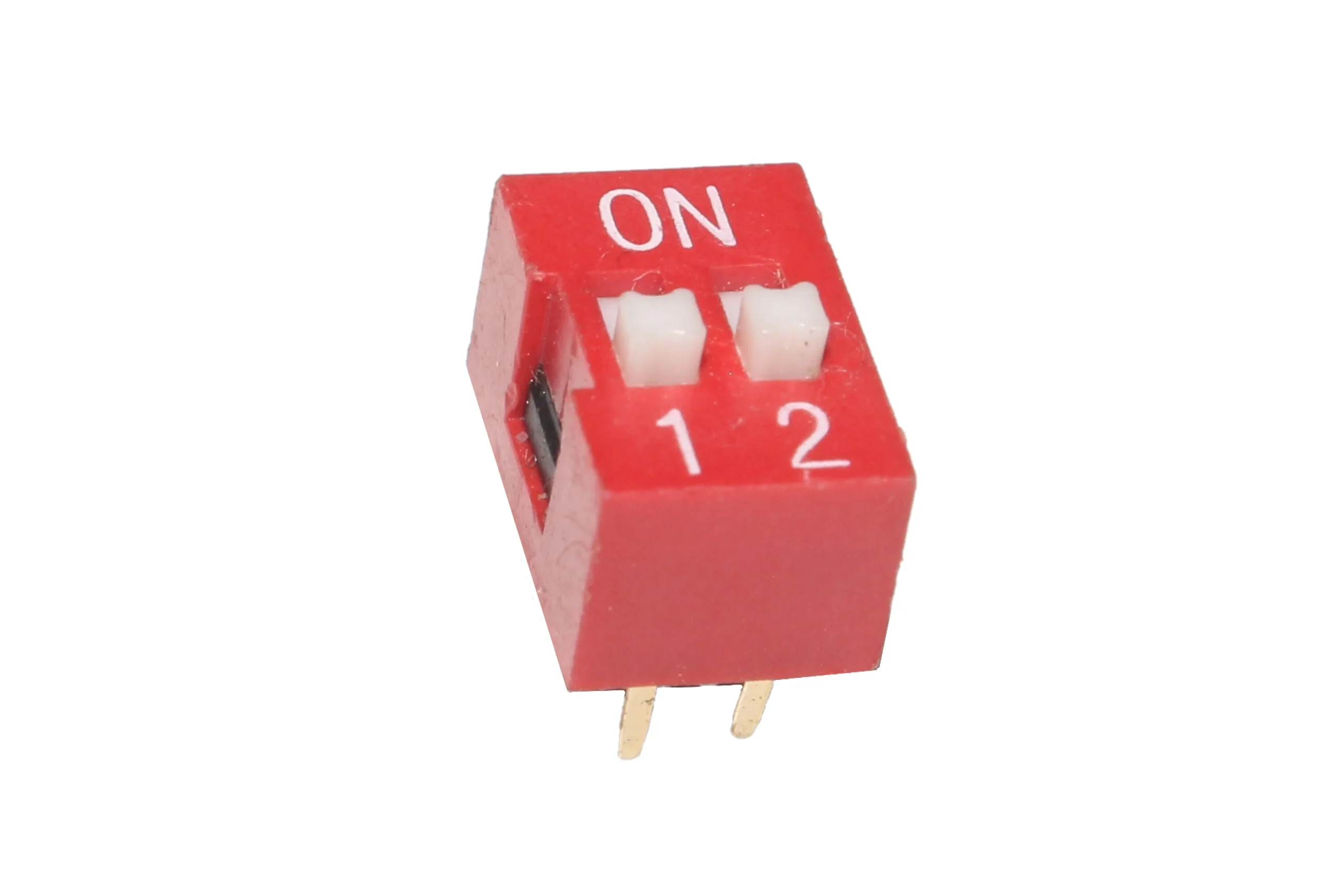

DIP Switch 2 Position – Red Color

A DIP switch 2 position is a small, rectangular switch that is typically mounted on a printed circuit board (PCB). DIP Switch 2-Position has two positions, or states: on and off. The switch is typically used to configure the settings of a device or to provide a user interface for selecting options.

DIP switches are typically made of plastic and have four pins. The pins are arranged in two pairs, with one pin in each pair connected to the on position and the other pin connected to the off position. When the switch is in the on position, the two pins in the on pair are connected, and when the switch is in the off position, the two pins in the off pair are connected.

DIP switches typically use in electronic devices where it is necessary to change the settings of the device or to provide a user interface for selecting options.

The input voltage for a DIP switch 2-position is typically 24VDC@ 50mA. This means that the switch can withstand an input voltage of up to 24 volts and a current of up to 50 milliamperes. However, the actual input voltage rating of a DIP switch 2-position may vary depending on the specific switch. It is important to check the datasheet for the specific switch to determine the actual input voltage rating.

The working principle of a DIP switch 2-position is based on the simple on/off switch. The switch has two positions, or states: on and off. When the switch is in the on position, the two pins in the on pair are connected, and when the switch is in the off position, the two pins in the off pair are connected.

Features : –
The switch typically made of plastic and has four pins. The pins are arrange in two pairs, with one pin in each pair connected to the on position and the other pin connected to the off position.

The switch typically operated by a small lever or rocker that located on the top of the switch. When the lever or rocker is move, it causes a spring-loaded contact to move between the two pairs of pins. When the contact is in the on position, the two pins in the on pair connected, and when the contact is in the off position, the two pins in the off pair are connect. DIP switches 2-position offer a number of benefits, including:

Easy to use
Inexpensive
Versatile
Reliable
DIP Switch 2 Position Specifications : –
The working principle of a 2 Way Dip Switch is relatively simple, but it is very effective. DIP switches are a popular way to configure the settings of electronic devices because they are easy to use and they are relatively inexpensive. Here are some of the key features of a DIP switch 2-position:

Two positions: on and off
Four pins
Packaged in standard DIP-4 footprint
Rated up to 24VDC@ 50mA
PCB leads that are long enough to work OK in some solderless breadboards
DIP Switch 2 Position Applications : –
The state of the switch can determine by checking the voltage between the two pins in each pair. If the voltage between the two pins in the on pair is 0 volts, then the switch is in the off position. If the voltage between the two pins in the on pair is not 0 volts, then the switch is in the on position.

Here are some of the applications of DIP switches 2-position:

Configuring the baud rate, parity, and stop bits of a serial port
Selecting the operating mode of a device, such as the boot mode of a computer
Enabling or disabling features of a device
Providing a user interface for selecting options
