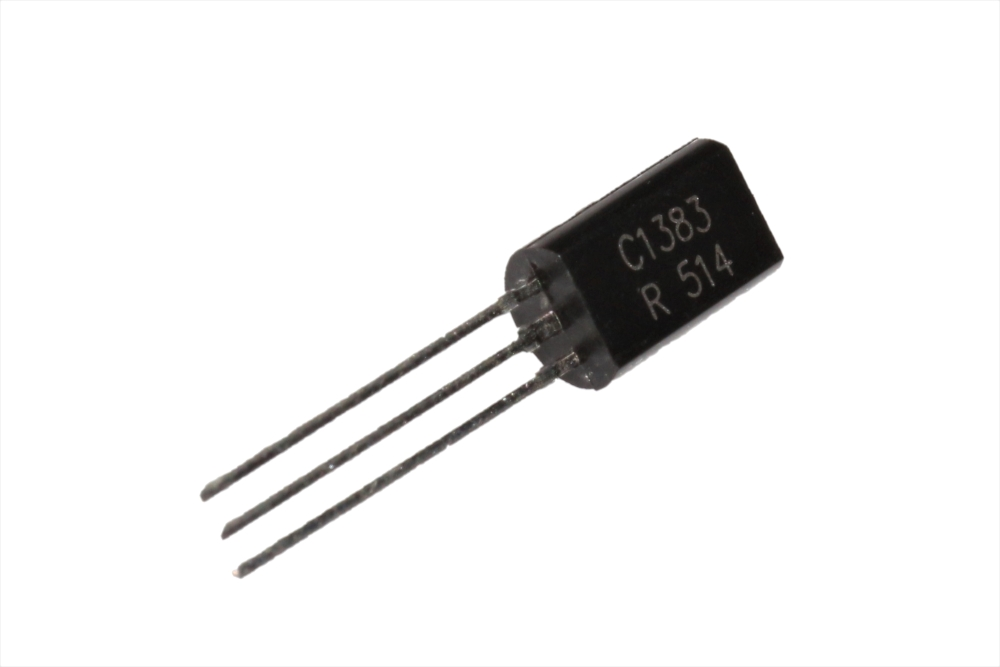

C1383 2SC1383 NPN Transistor 25V/1.0A

The C1383 2SC1383 transistor is a NPN transistor that is commonly use in audio frequency power amplifiers and drivers. C1383 NPN Transistor is a high gain transistor that can handle up to 1 amp of collector current. It is also relatively inexpensive and easy to find.

The 2SC1383 C1383 transistor is a NPN transistor that has a maximum collector-emitter voltage of 25V. This means that the voltage difference between the collector and the emitter of the transistor should not exceed 25V. If the voltage difference between the collector and the emitter exceeds 25V, the transistor could be damaged.

The C1383 2SC1383 transistor also has a maximum collector-base voltage of 30V. This means that the voltage difference between the collector and the base of the transistor should not exceed 30V. If the voltage difference between the collector and the base exceeds 30V, the transistor could be damaged.

The 2SC1383 C1383 transistor has a minimum emitter-base voltage of 0.7V. This means that a minimum of 0.7V should be applied between the emitter and the base of the transistor in order to turn it on. If less than 0.7V is applied between the emitter and the base, the transistor will not turn on.

The C1383 2SC1383 transistor is a NPN transistor that works on the principle of a bipolar junction transistor (BJT). A BJT is a semiconductor device that has three terminals: the emitter, the base, and the collector. The emitter and the collector are heavily doped, while the base is lightly doped.

In other words, the C1383 transistor can use to amplify a small signal into a larger signal. This is because a small change in the voltage applied to the base-emitter junction can cause a large change in the current flow between the collector and the emitter.

Features : –
The 2SC1383 transistor can use in a variety of audio frequency power amplifier and driver circuits. 2SC1383 NPN Transistor is a good choice for applications where you need a high gain transistor that can handle a lot of current. The 2SC1383 transistor has a number of benefits that make it a popular choice for audio frequency power amplifiers and drivers. These benefits include:

High gain
High current handling
Low saturation voltage
Wide operating temperature range
C1383 2SC1383 NPN Transistor Specifications : –
The 2SC1383 can handle up to 1 amp of collector current, which makes it suitable for driving high-power speakers or other loads. The 2SC1383 has a high gain of up to 340, which means that it can amplify a small signal into a larger signal. This is important for audio amplifiers, where you need to amplify the signal from a microphone or other source to a level that is loud enough to be heard. Here are the specifications of the 2SC1383 transistor:

Type: NPN
Collector-Emitter Voltage: 25V
Collector-Base Voltage: 30V
Emitter-Base Voltage: 5V
Collector Current: 1A
Collector Dissipation: 1W
DC Current Gain (hfe): 85 to 340
Transition Frequency: 200 MHz
Operating and Storage Junction Temperature Range: -55 to +150°C
