Arduino MEGA 2560 PRO Price in pakistan

Original price was: ₨ 3500.Current price is: ₨ 2950.

Mega 2560 PRO MINI it is version PRO of Arduino Mega 2560 R3. Built on the Atmel ATmega2560 microcontroller.

The board has compact size 38×52mm. It is a good solution, to make your final project on solder prototyping board. You can find all pinouts on board: digital’s I/O – 70 and analog’s input – 16.Mega 2560 PRO MINI as functionality similar to the Arduino Mega 2560. It is built on MINI board, but the same stable, and uses the original chips ATmega2560 (16MHz). The board has a USB interface, based on USB-serial converter CH340G. For connecting to PC, pls use the Micro USB cable.

Compare
Add to wishlist
Category:
Description

You can supply power to board through the power pin-headers or USB interface. Output current for 5V version – about 800mA, for 3.3V version – about 800mA (Please note that the higher the input voltage the lower the outgoing current). That will provide a reliable power most of your initial projects.

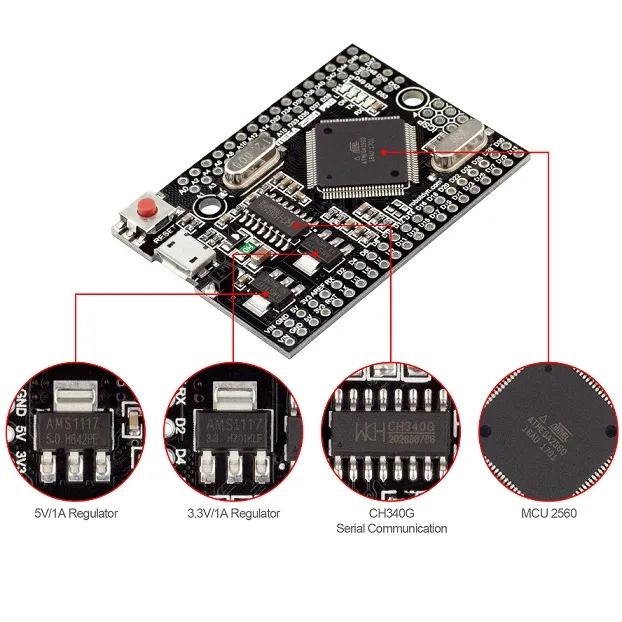

On the picture, you can see the real size of this board, compare with the size of Mega Rev3.

Features:
Form-factor — PRO MINI;
Microcontroller — ATmega 2560 (16Mhz);
Input voltage — 6-9V (peack 18V);
I/O — 70 digital, 16 analog;
UART — 4 bus;
PCB size — 38mm×52mm
Specifications:
Microcontroller ATmega2560
USB-TTL converter CH340
Power Out 5V-800mA
Power IN. 5V
Power IN. VIN/DC Jack 9-12V
Power Consumption 5V 220mA
Logic Level 5V
USB Micro USB
Clock Frequency 16MHz
Operating Supply Voltage 5V
Digital I/O 54
Analog I/O 16
Memory Size 256kb
Data RAM Type/Size 8Kb
Data ROM Type/Size 4Kb
Interface Type ISP
Operating temperature −40С°/+85С°
Length×Width 38×54mm
Package Includes:
1 x Mega 2560 PRO Mini Embed CH340G ATmega 2560-16A with Male Pin Headers in Pakistan

electronicstore.pk

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Arduino MEGA 2560 PRO Price in pakistan”

Your email address will not be published. Required fields are marked *

Shipping & Delivery
wd-ship-1
wd-ship-2

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Related products

-24%
Compare

Arduino Due Price in Pakistan

,
Original price was: ₨ 8500.Current price is: ₨ 6500.
This Arduino Due microcontroller is based on the board of Atmel SAM3X8E ARM CortexM3 CPU. This Arduino due board is based on 32 bit ARM core microcontroller. Atmel SAM3X8E Arduino board contains 54 digital input/ output pins, 12 analog inputs, 4 UARTs, an 84 Mhz clock, an USB OTG capable connection, 2 DAC and DAC stands for Digital to Analog Converter, 2 TWI, a power jack, an SPI header, a JTAG header, a reset button and an erase button. Arduino board contains everything needed to support the microcontroller. We just need to connect the micro USB of Arduino Due to the computer. And this cable is included in the product pack. We just need to power it with an AC to DC adapter or battery to get started. This Arduino Due is compatible with all Arduino shields. And that works at 3.3V. these are compliant with 1.0 Arduino pinout. we provide high 6 inches micro USB cable with high-quality connection Arduino Due
Add to wishlist
Add to cart
Quick view
-12%
Compare

Arduino Pro Micro 5v 16m Atmega32u Price in Pakistan

Original price was: ₨ 1450.Current price is: ₨ 1270.
Host port: USB Micro B Microcontroller: ATMega32U4 MPU: AVR (8-bit) Voltage: 3.3V or 5V Clock speed: 8 MHz or 16 MHz Digital I/O pins: 18 RAM: 2.5 KB Program memory: 32 KB EEPROM: 1 KB Click Here to Download Open Source Arduino Softwa
Add to wishlist
Add to cart
Quick view
-30%
Compare

Arduino Pro Mini 5v 16mhz Atmega328p Price in Pakistan

Original price was: ₨ 1000.Current price is: ₨ 700.
he Arduino Pro Mini 5V/16MHz ATmega328P is a small, low-cost, and versatile microcontroller board based on the ATmega328P. Mini 5v/16mhz has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, an on-board resonator, a reset button, and holes for mounting pin headers.
Add to wishlist
Add to cart
Quick view
-11%
Compare

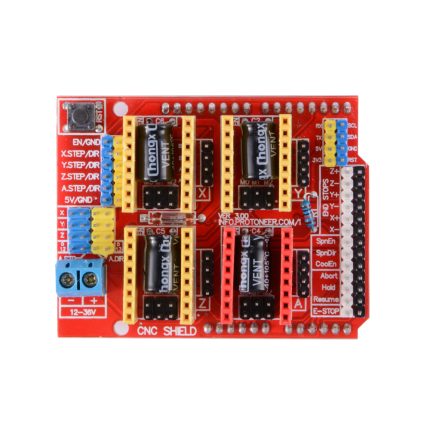

ARUDINO CNC SHIELD V3 FOR ARDUINO UNO R3

,
