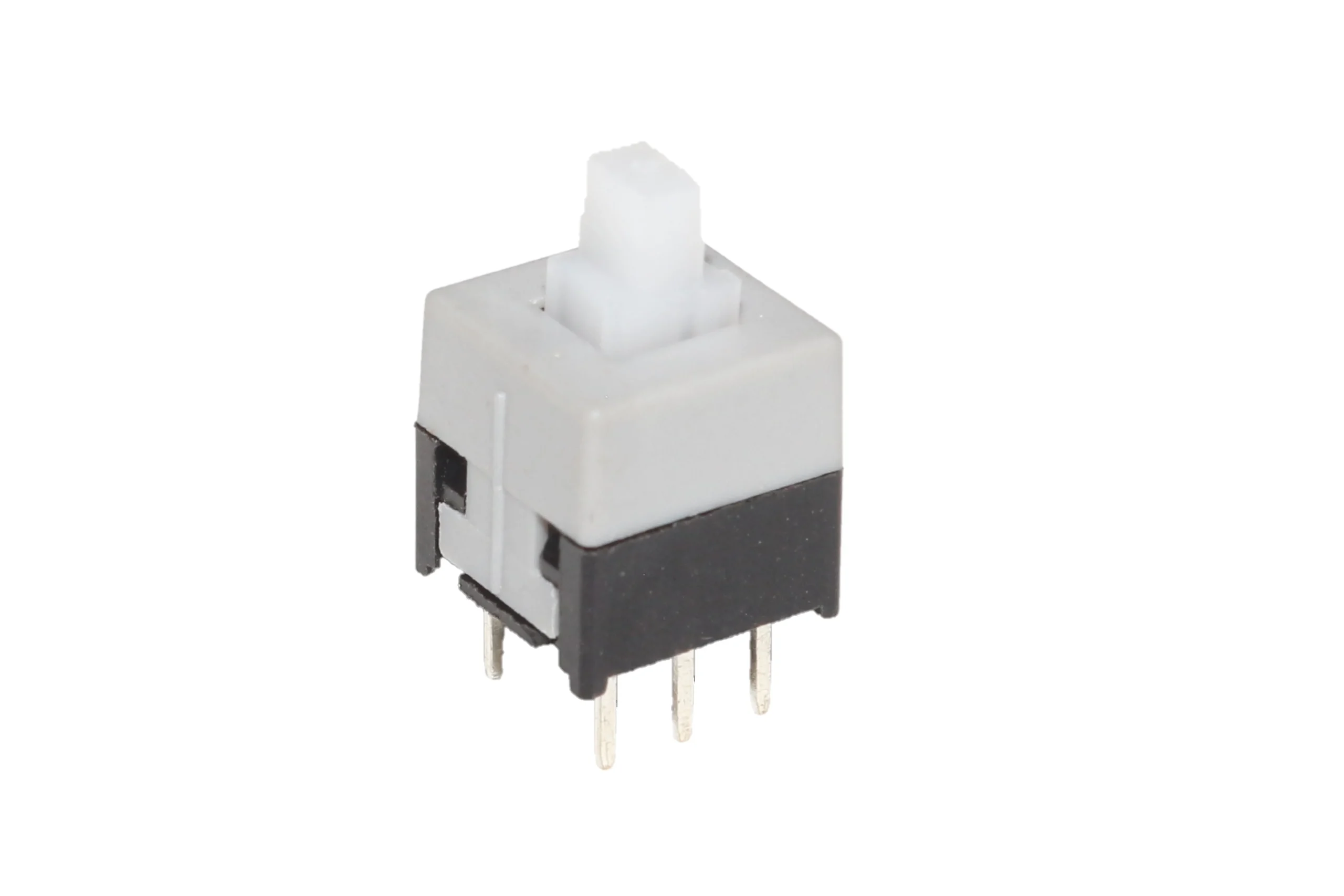

This 6 pin male push lock button DPDT PCB mount is a type of switch that has 6 pins and is used in printed circuit boards (PCBs). The switch has a button that, when pressed, will either lock or unlock the switch. When the switch is locked, the button will stay depressed and the circuit will remain closed. When the switch is unlocked, the button will pop back up and the circuit will be opened.
The DPDT in the name stands for “double pole, double throw”. This means that the switch has two poles (inputs) and two throws (outputs). In other words, the switch can connect two different input terminals to two different output terminals.
6 pin push lock button DPDT PCB mounts are often used in applications where it is necessary to keep a circuit closed until the button is pressed again. For example, they can be used in power tools to prevent the tool from accidentally starting up.
most 6 pin push lock button DPDT PCB mounts have an input voltage rating of between 12 and 24 volts. When the button is not pressed, the switch is in the “open” position. This means that the two poles (inputs) are not connected to the two throws (outputs). When the button is pressed, the switch engages a locking mechanism.
This mechanism keeps the button depressed and the switch in the “closed” position. In this position, the two poles (inputs) are connected to the two throws (outputs). To unlock the switch, the button must be pressed again. This will disengage the locking mechanism and allow the button to pop back up. The switch will then return to the “open” position.
Features : –
6 pin push lock buttons are often used in applications where it is necessary to keep a circuit closed until the button is pressed again. For example, they can use in power tools to prevent the tool from accidentally starting up. They can also be used in security systems to keep a door or gate locked until the button is pressed to unlock it.
Here are some of the benefits of using a 6 pin push lock button DPDT PCB mount:
Self-locking
Double pole, double throw
PCB mount
Durable
Affordable
6 Pin Male Push Lock Button Specifications : –
A 6 pin push lock button is a type of switch that has 6 pins. The pins are used to connect the switch to a circuit. The switch has a button that, when pressed, will either lock or unlock the switch. When the switch is locked, the button will stay depressed and the circuit will remain closed. When the switch is unlocked, the button will pop back up and the circuit will be opened.
Here are some of the specifications of a 6 pin push lock button DPDT PCB mount:
Input voltage 12 to 25 Volts
Current rating 1 to 3 AMP
Operating temperature -20 to 85 Degree Celsius
Mounting type Through-hole
