Module description: 1. 30A relay module, normally open interface maximum load: AC 250V/30A, DV 30V/30A; 2. Optical coupling isolation, driving ability is strong, stable performance;Trigger current is 5mA; 3. Module can be set high level or low level trigger by the jumper; 4. Power indicator light (green), relay status indicator light (red); 5. Module Size:50mm*33mm*24mm;
Technical parameters: Voltage version:5V The static current:5mA Working current:190mA Trigger current:2-4mA
1. DC+ : DC power supply positive pole 2. DC- :DC power supply negative pole 3. IN : signal triggering pin 4. JD+ : relay control voltage positive 5. JD- : relay control voltage negative 6. DC+ and JD+ shorted by jumper cap, DC- and JD- shorted with jumper cap, it is the same voltage between trigger terminal and relay control terminal 7. High and low level trigger mode selection.Jumper and L pin connection, IN pin is low level triggerJumper and H pin connection, IN pin is high level trigger
8. Normally closed pin (NC) : relay normally closed pin 9. Common pin (COM) : relay common pin 10. Normally opened pin (NO) : relay normally opened pin
-15%
0%
FC-65 12V 30-AMP 1-Channel Relay Module SLA-12VDC-SL-C
Original price was: ₨ 550.₨ 500Current price is: ₨ 500.

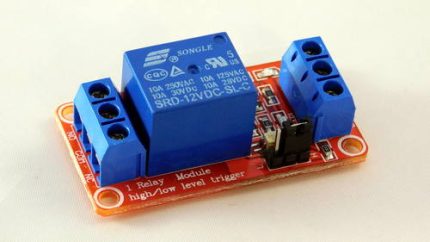

Relay module, 1 channel, 12VN10A
Original price was: ₨ 400.₨ 300Current price is: ₨ 300.
5v 30a 1 Channel Relay Module Sla-05vdc-sl-c
Original price was: ₨ 650.₨ 550Current price is: ₨ 550.
The 5V 30A Relay Module is a versatile and essential component for controlling high-current devices in industrial applications. This powerful relay offers reliable switching, optocoupler isolation, and a wide range of features, making it ideal for various projects.
Key Features:
High Current Capacity: Handles loads up to 30A.
5V DC Control: Easily controlled by microcontrollers.
Optocoupler Isolation: Provides electrical isolation for safety.
Durable Construction: Built to last for long-term use.
Versatile Applications: Suitable for industrial control, automation, and more.
Specifications:
Model Number: SLA-05VDC-SL-C
Contact Load: High Power
Theory: Electromagnetic Relay
Power Source: DC 5V
Current: 30A
Pins: 6
Usage: General Purpose
Order Now:
Upgrade your industrial projects with our 5V 30A Relay Module. Experience the power, reliability, and versatility of this essential component.
