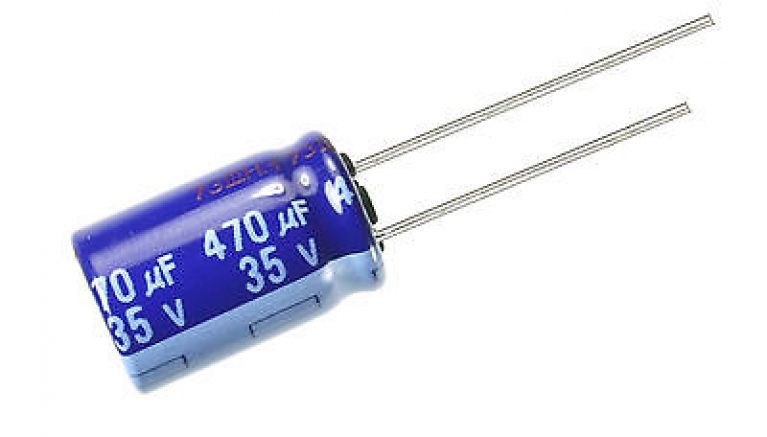

470uf 35v Electrolytic Capacitor is a high temperature electrolytic capacitors with a low impedance and 20% tolerance, offering a high endurance solution
An electrolytic capacitor uses an electrolyte (a liquid or gel containing a high concentration of ions) to achieve a large capacitance than the other capacitor types.
Electrolytic Capacitors have 2 Polars – Positive and Negative.
470 microfarad 35v capacitors are polarized, meaning that the voltage on the positive terminal must always be greater than the voltage on the negative terminal. They are commonly used as filters in devices in various power supplies to reduce the voltage ripple as well as input and output smoothing as an LPF.
470uF 35V Electrolytic Capacitor is a high quality electrolytic capacitor which offers long life and high reliability. Electrolytic Capacitors are most commonly used type of capacitors in Electronic Circuits.
Aluminum electrolytic capacitors are polarized electrolytic capacitors whose anode electrode (+) is made of a pure aluminum foil with an etched surface. The aluminum forms a very thin insulating layer of aluminum oxide by anodization that acts as the dielectric of the capacitor.
A non-solid electrolyte covers the rough surface of the oxide layer, serving in principle as the second electrode (cathode) (-) of the capacitor. A second aluminum foil called “cathode foil” contacts the electrolyte and serves as the electrical connection to the negative terminal of the capacitor.
Features: –
High Quality Electrolytic Capacitors
Low Leakage Current
Long Life
Accuracy: ±20%
Wide Operating Temperature Range: -40°C to +85°C
Dimensions : Body Height – 11mm, Body Diameter – 5mm
Pin Spacing: 2mm
Radial lead type
Low ESR
High reliability
Compact size
High ripple current
