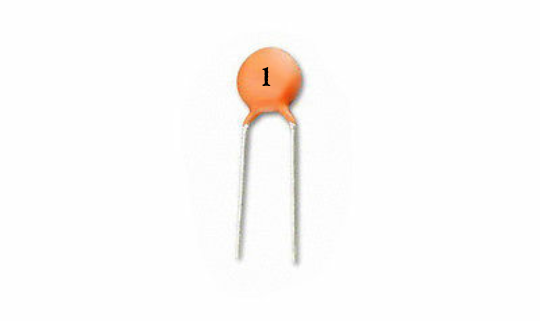

1pf ceramic disc capacitor is a type of capacitor that uses ceramic material as the dielectric. It is a fixed-value capacitor, meaning that its capacitance cannot be changed.
1pF Ceramic Capacitor Use this capacitor for power decoupling, having a smooth power in your circuit, timing circuits etc.
The capacitance of a 1pf ceramic disc capacitor is 1 picofarad. The voltage rating of a 1pf ceramic disc capacitor is typically 50 volts.
Ceramic disc capacitors are non-polarized, meaning that they can be connected to a circuit in either polarity. They are small, lightweight, and inexpensive, making them ideal for a variety of applications.
A ceramic capacitor is a fixed-value capacitor in which ceramic material acts as the dielectric. It is constructed of two or more alternating layers of ceramic and a metal layer acting as the electrodes. The composition of the ceramic material defines the electrical behavior and therefore applications
The operating temperature of a 1pf ceramic disc capacitor is typically -55 to +125 degrees Celsius. However, some capacitors may have a wider operating temperature range.
1pf ceramic disc capacitors are a versatile and reliable type of capacitor that can be used in a variety of applications. When choosing a 1pf ceramic disc capacitor, it is important to consider the factors listed above to ensure that the capacitor is the right fit for the application.
Features:
Stable, Low Cost Ceramic Capacitor
Accuracy: ±20%
Operating Temperature Range: +10°C to +85°C
Dielectric Withstand: 2.5x Rated Voltage
Body Diameter: 4mm
Pin Spacing: 2.5mm
