Type
Description
Select All
Category
Power Supplies – Board Mount
DC DC Converters
Mfr
XP Power
Series
ITW (1W)
Packaging
Tube
Part Status
Active
Type
Isolated Module
Number of Outputs
1
Voltage – Input (Min)
4.5V
Voltage – Input (Max)
9V
Voltage – Output 1
15V
Voltage – Output 2
–
Voltage – Output 3
–
Current – Output (Max)
67mA
Power (Watts)
1 W
Voltage – Isolation
1.5 kV
Applications
ITE (Commercial)
Features
SCP
Operating Temperature
-40°C ~ 85°C
Efficiency
79%
Mounting Type
Through Hole
Package / Case
6-SIP Module, 4 Leads
Size / Dimension
0.67″ L x 0.30″ W x 0.43″ H (17.0mm x 7.6mm x 11.0mm)
Control Features
–
Standard Number
62368-1
Base Product Number
ITW0515
-7%

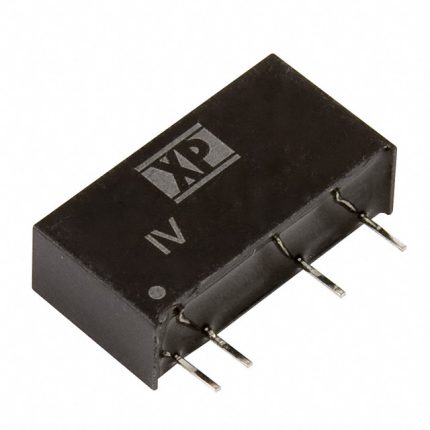

1470-2485-5-ND Isolated Module DC DC Converter 2 Output 9V -9V 56mA, 56mA 43.2V - 52.8V Input
Original price was: ₨ 3750.₨ 3375Current price is: ₨ 3375.

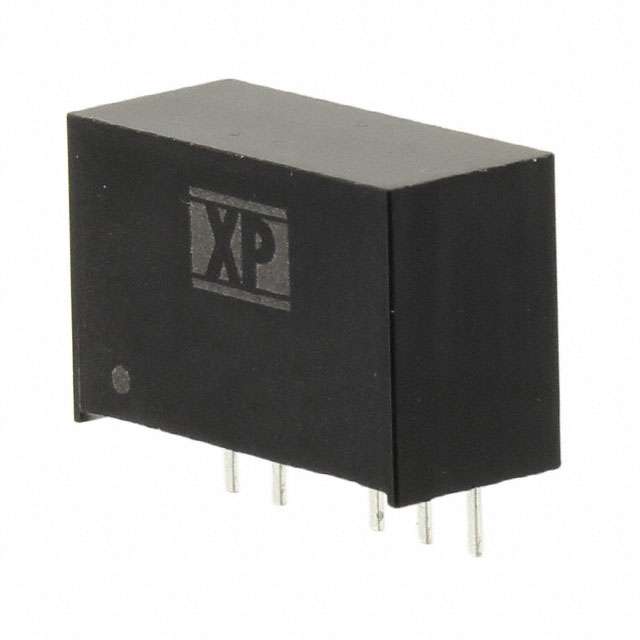

1470-1392-5-ND Isolated Module DC DC Converter 1 Output 9V 111mA 2.97V - 3.63V Input
Original price was: ₨ 2575.₨ 2425Current price is: ₨ 2425.

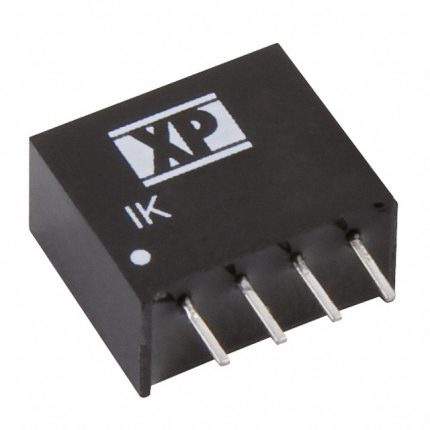

1470-2641-5-ND Isolated Module DC DC Converter 1 Output 15V 67mA 4.5V – 9V Input
Original price was: ₨ 2550.₨ 2375Current price is: ₨ 2375.
