Type
Description
Select All
Category
Power Supplies – Board Mount
DC DC Converters
Mfr

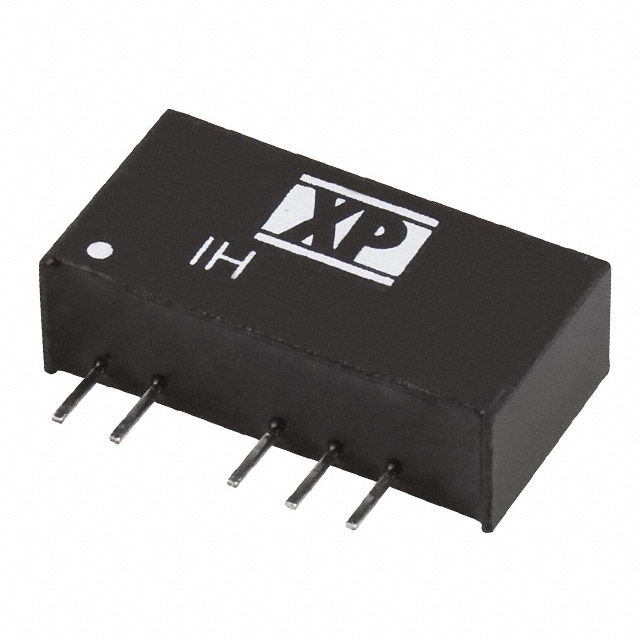

XP Power
Series
IH (2W)
Packaging
Tube
Part Status
Obsolete
Type
Isolated Module
Number of Outputs
2
Voltage – Input (Min)
43.2V
Voltage – Input (Max)
52.8V
Voltage – Output 1
3.3V
Voltage – Output 2
-3.3V
Voltage – Output 3
–
Current – Output (Max)
200mA, 200mA
Power (Watts)
2 W
Voltage – Isolation
1 kV
Applications
ITE (Commercial)
Features
–
Operating Temperature
-40°C ~ 85°C
Efficiency
60%
Mounting Type
Through Hole
Package / Case
6-SIP Module, 5 Leads
Size / Dimension
0.76″ L x 0.28″ W x 0.40″ H (19.3mm x 7.2mm x 10.2mm)
Control Features
–
Base Product Number
IH4803
Documents & Media
Resource Type Link
Datasheets IH Series, 2 W Datasheet
Environmental Information
RoHS3 IH Series
RoHS Statement
PCN Obsolescence/ EOL DK OBS NOTICE
HTML Datasheet IH Series, 2 W Datasheet
